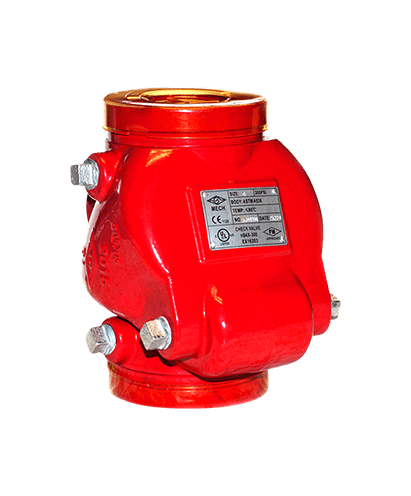

The grooved end check valves are UL/ULC listed and FM approved and very suitable for use in building riser pipes and sprinkler systems for fire protection. The grooved ends feature a time saving installation and the built-in spring ensures a smooth and non-slam closure of the disc.
Size : 2″ – 8″, DN50 – DN200
Rating : PN24
Working Pressure : 300PSI, 200PSI and 250PSI available upon request / 0,35Bar – 24Bar
Material : Ductile Iron ASTM A 395, Bronze, Stainless Steel, Carbon Steel
Coating : Fusion bonded epoxy coating in accordance with ANSI/AWWA C550
Temperature : 0°C – 80°C
End : Groove to AWWA C606, Groove to ISO 6182
Manufacturer : TYCO GRINNEL, MECH AVK Other Request
» Low pressure drop
» PDM leak tight sealing
» Fast and easy installation with grooved end connections
» Installation in both horizontal or vertical line with upward flow
» All wetted parts of stainless steel provide superior corrosion resistance
» Red RAL 3000 2-layer paint, min. 50-150 µ
