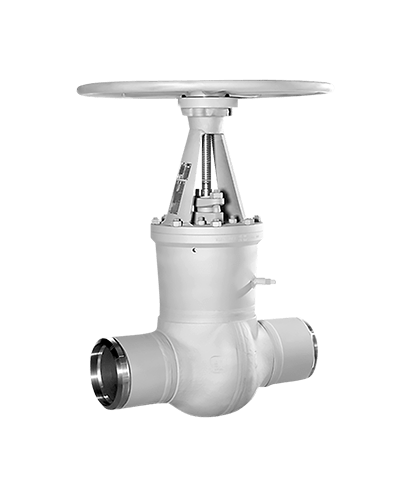

Pressure Seal Gate Valve

Pressure Seal Flexible Wedge Gate Valves are ideal for high pressure steam, liquid, catalytic reformers, hydrocrackers and other tough services. In the tough world of High pressure, High temperature valve applications, Pressure seal gate Valve continue to provide a wide range of industries with a safe, leak free, pressure containing boundary.

Category:

Size                                   :   2″ – 24″ (DN50 – DN600)

Rating                             :   ANSI 150 – 1500, PN100 – PN760

Working Pressure   :   ASME B16.34

Material                         :   WCB / LCB / LCC / CF8M / CF8 / CF3M / 4A / 6A / Inconel

Temperature               :   -10°C  – 550°C

End                                   :   Flanged, Butt Weld

Manufacturer            :   CAMTECH, VELAN Other Request

» Live loading on packing can be provided as request

» Valves can be supplied with Pneumatic, Hydraulic or electric actuators

» Cast body precisely machined with integral flanges

» Longer Seat rings are designed for higher temperature and higher pressure

» Two piece gland and gland flange arrangement for reduced stem wear

» One piece flexible wedge as standard which provides superior tightness and non sticking operations
