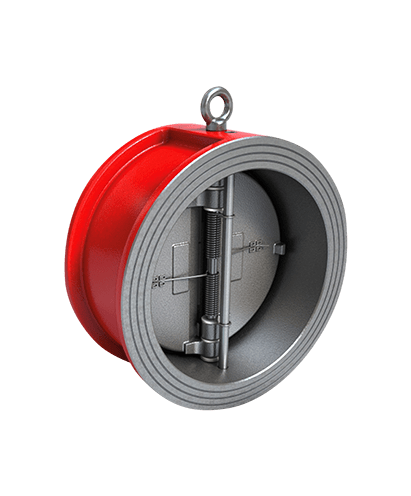

Dual Plate Check Valve

The Bray/Rite double door check valve is designed for energy efficient protection against flow reversal. Featuring dual lightweight discs, responsive independent springs and a durable resilient seat for reliable flow-activated operation with tight sealing and
reduced water hammer potential.


Size                                   :   2” – 12” (50mm – 300mm)

Rating                             :   ANSI Class 150

Working Pressure   :   325psi – 450psi

Material                         :   Ductile Iron, Stainless Steel

Temperature               :   -50°F to 300°F EPDM, -40°F to 250°F Buna

Manufacturer            :   BRAY, Other Request

» Low weight and short laying length saves initial cost

» Independent springs provide quick-closing, non-slam shutoff for reduced water hammer potential

» Lightweight, spring-loaded discs have low cracking pressure for energy efficient operation

» Contoured body provides a short and straight flow path with minimal turbulence
