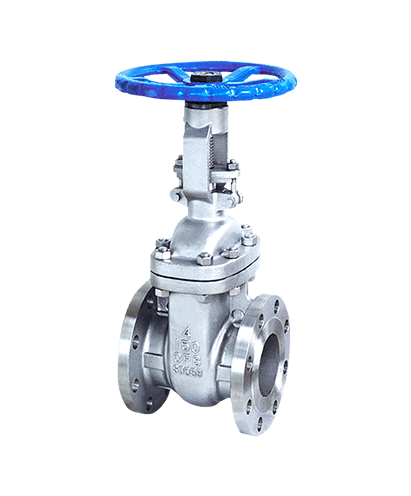

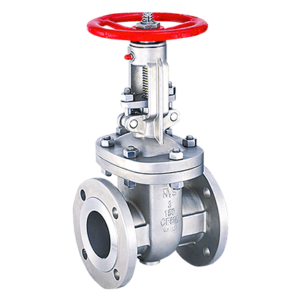

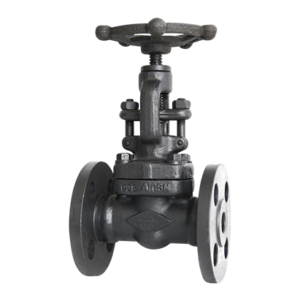

Gate Valve

Gate valves are designed to turn the flow of a liquid on or off by restricting or opening the flow with a round or rectangular wedge. Gate Valves can also control the pressure of liquid flow through pipes or valves.


Size                                   :   2″ – 24″ DN50 – DN600

Rating                             :   ASME Class 150 – Class 300

Working Pressure   :   Other Request

Material                         :   Carbon steel, Stainless Steel, Alloy Steel, Cast Stell, Bronze, Iron

Temperature               :   Other Request

End                                   :   Flanged, Weld End

Manufacturer            :   VELAN, POWELL VALVES, Other Request

» Wall thickness to ASME B16.34.

» Optional integral CoCr alloy hardfaced seat available for longer service life

» Seat faces lapped for smooth finish and superior sealing

» Stems are non-rotating with surface finish to maximize packing seal for low fugitive emissions

» Flexible Wedge for improved seating and ease of operation

» Each valve is shell, seat and backseat pressure tested per industry standard API 598
