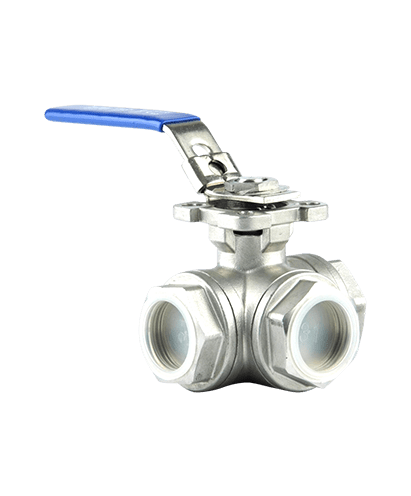

Three Way Ball Valve

High performance 3 way (L and T port) reduced bore 316 Stainless Steel ball valve with BSP threaded connections. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Typical applications include water treatment, chemical, marine, petrochemical and general industry.


Size                                   :   ¼” – 4″, DN8 – DN100

Rating                             :   ANSI Class 150

Working Pressure   :   63 BAR

Material                         :   316 Stainless Steel, Carbon Steel

Temperature               :   -20°C to 180°C

End                                   :   Threaded, Flanged

Manufacturer            :   PROCESS SYSTEMS, JAMESBURY, Other Request

» High quality

» Long service life

» Double block and bleed seat option

» Piping design flexibility

» Side and bottom port options

» Robust engineering design
