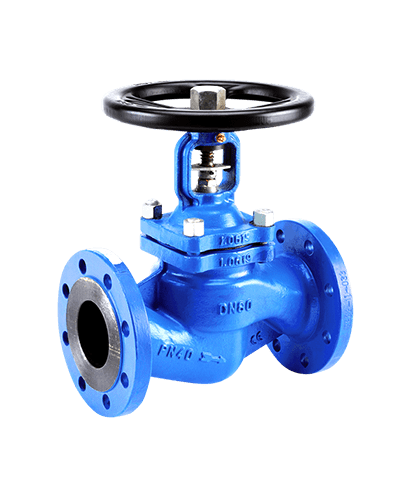

Bellow Seal Globe Valve

Suitable for industrial uses in applications such as recycling facilities, chemical industries, hospitals, process water installations for mediums such as steam, process water, air and oil. Non-Rising Handwheel operated, with flanged connections, double wall bellows seal, plug with marginal seat and a bonnet optimised for accessories. Options available upon request include angle pattern bodies, flanges according to ANSI, regulating plugs, open & close limit switches and PTFE seats.


Size                          :   DN15-DN400

Rating                     :   PN16,PN25,PN40,PN63

Material                :   Carbon Steel, Stainless Steel, Chromium, Inconel, Other special alloys

Temperature      :   -40°C to 420°C

End                           :   Flanged, But Weld, Socket Weld, Threaded

Manufacturer    :   Velan, Bonney Forge, Spirax sarco, Other Request

» Storage of oil device

» Circlip fixing device

» Bellows seal welded to stem

» Bellows seal 8,000 load cycles

» Yoke gasket,double chambered

» Double wall bellows seal as standard

» Plug with marginal seat Welded seat in stellite or Cr-steel

» Actuator retrofitting Secondary sealing: gland packing
