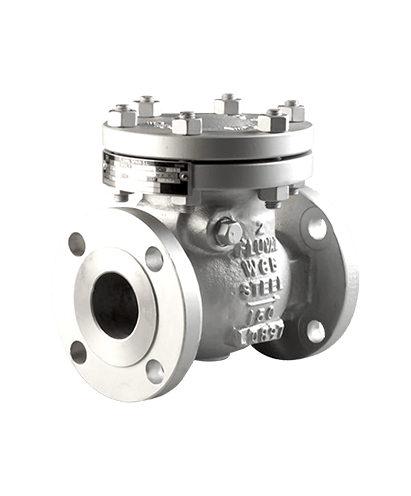

Carbon Steel Check Valve

Swing Check Valves are sometimes referred to as non-return, clack, retention, reflux or one way valves. All Check valves are self-activating valves, designed to prevent back flow and are used in most cases to protect equipment, for instance pumps, product and people.


Size                                   :   2″ – 64″

Rating                             :   ANSI Class 150 – Class 2500

Working Pressure   :   Max 150 PSI

Material                         :   Carbon Steel / WCB

Temperature               :   -196°C  – 560°C

End                                   :   Flanged

Manufacturer            :   Velan, Other Request

» Precision machined castings

» Disc shaft does not penetrate body

» Accurately machined, fullyenclosed gasket

» Robust one-piece construction to withstand the severe shock of check valve service

» Disc is fastened securely to disc hanger with a lock nut and cotter pin
