Size : ½” – 12″
Rating : ANSI 150 – ANSI 1500
Material : Carbon Steel
Temperature : -20℃ to 350℃
Working Pressure : 0Bar – 20Bar
End : Flanged
Manufacturer : Powell Valves, Process Systems, Velan, Other Request
- Sorry, this product cannot be purchased.

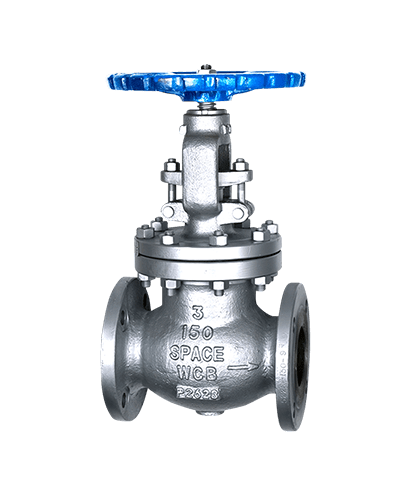

Cast Steel Globe Valve
Carbon Steel ANSI 150 Flanged Globe Valve with metal seat. Designed and manufactured to API602, face to face to ANSI B16.10 with flanges to ANSI B16.5. Tested in accordance with API 598. Max temperature of 260°C (@ 1171 Kpa). Stainless Steel reinforced graphite gasket and flexible graphite packing. 13CR reinforced seats and disc for greater durability and wear.
Great for steam and high temperature applications.
» Face-to-face according to ASME B16.10
» Test & inspection according to API 598
» Design & manufacture according to BS 1873
» ISO 15848, API 624
» End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)
