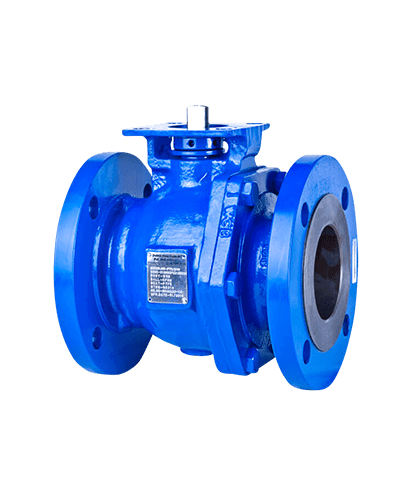

Floating Ball Valves are available in an extensive range of designs, materials, sizes and pressure classes and are in full conformance with ANSI, API and NACE specifications. All ball valves are designed in accordance with ASME B16.34 and where applicable with API 6D or BS EN ISO 17292.
Size : ½” – 12″, DN15 – DN300
Rating : Class150, 300, 600 & 900
Working Pressure : 500PSI, 1000, 1500, 2000 & 2500 / 35BAR, 69, 103, 138 & 172
Material : Cast Steel, Stainless Steel
Temperature : 38°C – 260°C / 100°F – 500°F
End : Flanged, Buttweld
Manufacturer : JAMESBURY, BONNEY FORGE, DELVAL, Other Request
» ISO 5211 top plate for direct mounting
» Contoured seat design with no seat extrusion
» Live loaded graphite stem packing
» Self relieving seats as standard
» Robust stem provides real blowout proof design
» Fully adjustable packing gland with actuator mounted
