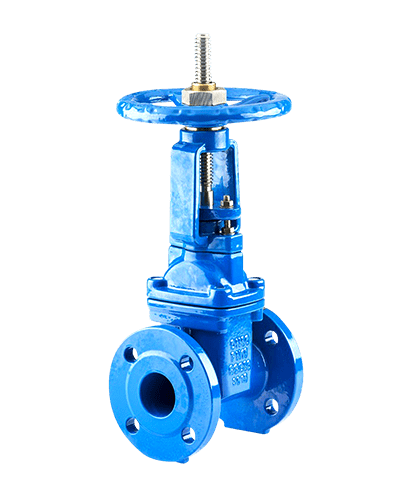

Rising Stem Gate Valve

Resilient Seated Ductile Iron Gate Valve also commonly known as a sluice valve. The gate valve is manually operated by a rising stem handwheel operation made in accordance with AS2638.2. AS4087 PN16 flanged (compatable with table D/E). Great for use in waste water, water treatment and fire industries. Outside stem and yoke, clockwise to close. All Bolt holes are silicone filled to avoid water pooling and corrosion.


Size                                   :   50mm to 300mm, DN50 – DN300

Rating                             :   PN10, PN16

Working Pressure   :   0 to 16 BAR

Material                         :   Ductile Iron / Cast Iron

Temperature               :   0°C  – 80°C

End                                   :   Flanged

Manufacturer            :   PROCESS SYSTEMS, NIBCO, Other Request

» Low operating torque values

» Hand wheel and electrical actuator operated

» Fully resistant to corrosion

» Has Flanged ends

» Non Toxic Blue fusion bonded epoxy coating

» Satisfies ISO, UNE, DIN, NF, BS and AWWA standards
