Size : 50mm to 600mm, DN50 – DN600
Rating : PN16
Pressure Range : 0 – 16Bar
Body : Ductile Iron
Coated : Jotun Powder Coated
operation : Handwheel non rising stem
Temperature : 0 – 80°
Manufacturer : PROCESS SYSTEMS, AVK, Other Request

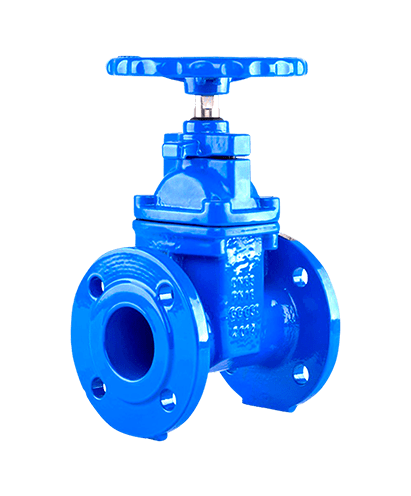

Resilient seated ductile iron gate valve also commonly known as a sluice valve. The gate valve is manually operated by a non rising stem handwheel operation made in accordance with AS2638.2. AS4087 PN16 flanged (compatable with table D). Great for use in waste water and water treatment industries. All Bolt holes are silicone filled to avoid water pooling and corrosion. Gate valve features oversized shaft, double shaft seals and twin lip seals to prevent ingress
and egress of media and foreign material.
Size : 50mm to 600mm, DN50 – DN600
Rating : PN16
Pressure Range : 0 – 16Bar
Body : Ductile Iron
Coated : Jotun Powder Coated
operation : Handwheel non rising stem
Temperature : 0 – 80°
Manufacturer : PROCESS SYSTEMS, AVK, Other Request
» Bubble tight shut-off
» Low head and loss
» Various types of operators
» Special accessories like by-pass unit
» Valve ends can be flanged , spigot , socket , mechanical joint , grooved and shoulder
» Flanged drilling to suit ANSI B16.1 , BS4504 , BS10 , BS 4772 , ISO , AS2129 ,DIN , JIS and etc
