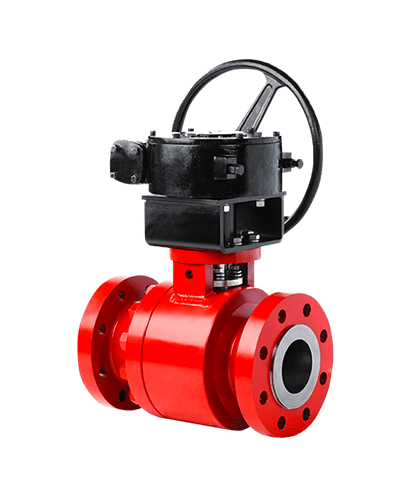

Metal Seated Ball Valve

Severe Service Metal Seated Ball Valves are suitable for the harshest applications. These products are customized as required for specific applications. Each M1 valve is engineered for the customer’s specific application and is backed by a specialized and trained service department.

Category:

Size                                   :   1/2″ – 36″ (DN 15 – 900)

Rating                             :   ASME 150 – 4500

Working Pressure   :   150 PSI – 4500 PSI

Material                         :   Stainless Steel, Carbon Steel, Low Alloy Steel

Temperature               :   up to 1100°F (593 °C)

End                                   :   Raised Face Flange, Ring Type Joint, Butt Weld, Socket Weld

Manufacturer            :   FLOW-TEK, Other Request

» A large spring washer stabilizes and locks the seat in place

» Gall resistant materials to withstand high cycles

» Available in raised face, ring joint, butt weld, socket weld, and hub-type configurations

» Bore sizes are based on ASME B16.34 Appendix A Table A-1

» Designed to have additional corrosion allowances that exceeds ASME B16.34

» A large, robust mounting flange is built into the valve body to support heavy operators
