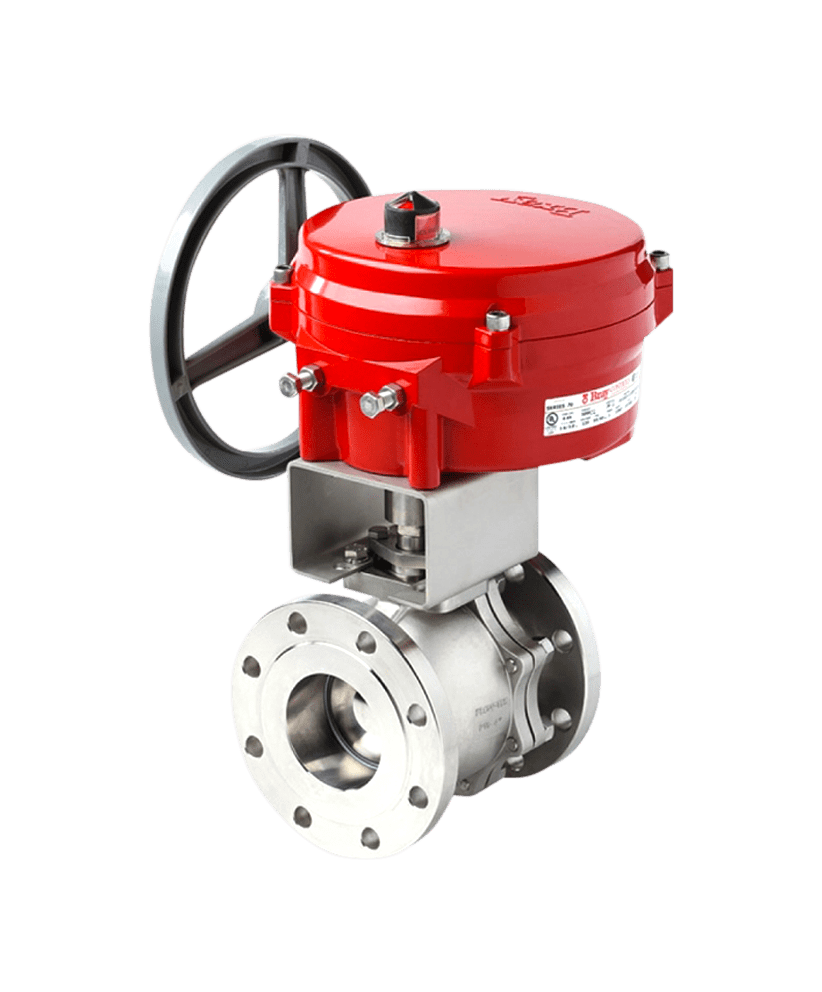

Flanged Series ball valves feature a floating ball design for low torque and increased cycle life. As standard, larger sized valves feature trunnion-type ball support. These rugged ball valves are ideal for industrial applications.
Size : ½” – 12″ (12mm – 300mm)
Rating : ASME Class 150 to Class 300, PN16 to PN40
Working Pressure : 100PSI – 425PSI
Material : Stainless Steel, Carbon Steel, Alloys
Temperature : -50°F to 650°F (-46°C to 343°C)
End : Flanged
Manufacturer : FLOW-TEK, JAMESBURY Other Request
» ½” – 2″ sizes comply with ISO 5211 standards
» All manually operated valves
» High quality stems with double “D” connections to ball and operator mounting
» ½” – 4” valve bodies are investment cast and solution annealed/normalized
» Bubble-tight shutoff and less operating torque
» As standard, larger sized valves feature a trunnion-type ball support
