Size : 3” to 24”
Rating : PN10/PN16, 150-300 Lb
Pressure Range : 150PSI
Temperature : -150°C – 135°C
End : Flanged
Manufacturer : Bray, Other Request

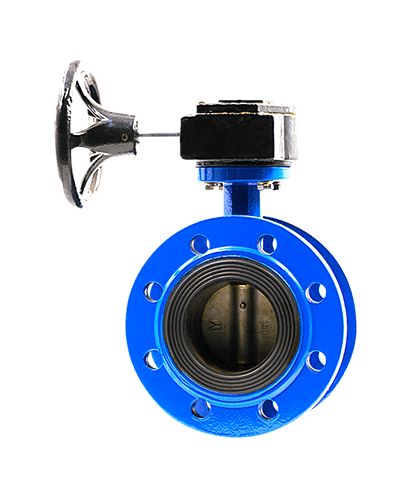

Double Flange Butterfly Valves are rugged, versatile and dependable valves routinely used in water filtration plants, pumping stations, pipelines and power plants to isolate equipment or systems.
The valve utilizes a high strength ductile iron body containing a molded and vulcanized Buna-N or EPDM rubber seat in combination with a 316SS disc seat for bi-directional tight shutoff at low and high pressure.
Size : 3” to 24”
Rating : PN10/PN16, 150-300 Lb
Pressure Range : 150PSI
Temperature : -150°C – 135°C
End : Flanged
Manufacturer : Bray, Other Request
Body : Cast Iron, Duclite Iron, WCB, Stainless Steel
Disc : Duclite Iron, WCB, Stainless Steel, Al-Bronze
Stem : Carbon Steel, Stainless Steel, Monel
Seat : EPDM, NBR, VITON, PTFE
O Ring : NBR, EFPDM
Busing : PTFE, Bronze
» Self-adjusting shaft seals
» Type 316 stainless steel external fasteners
» Integral FA actuator mounting pad, eliminates brackets
» Bi-directional zero leakage seating up to full rated pressure
» Rubber lined with integral seat, molded and vulcanized to body
» Internal and external epoxy coated, high strength ductile iron body
